Samhita Technologies is offering Low voltage AC drives modules,with high level of flexibility, functionality and engineering comfort for all industrial, Machinery & General Purpose application.
ACS800 Industrial drives designed to tackle any of your motor-driven applications, we offer drive modules from 0.55 to 5600 kW with line voltage 230 to 690 V. ACS880 drives simplifies operation, optimizes energy efficiency and helps maximize process output.
- A wide power and voltage range from 0.55 to 5600 kW, 230 to 690V
- Enclosure classes IP00, IP20, IP21, IP42, IP54 and IP55
- Direct torque control (DTC) for precise open and closed loop control
- Built-in safety features for simplified configuration
- Communication with all major automation networks
- Removable memory unit for easy drive commissioning and replacement
- Designed for easy service
- ACS880 single drives Wall-mounted and cabinet-built drives from 0.55 to 2800 kW/230 to 690V
- ACS880 drive modules Single drive modules and multidrive modules from 0.55 to 3200 kW/230 to 690V
- ACS880 multidrives From 1.5 to 5600 kW/380 to 690V
ACS580 General purpose drives saves energy and provides process control, Product is simple,intelligent and self-contained, all-compatible, wall-mounted and cabinet-built drive simplifies your processes and motor control with effortless efficiency.
- Easy to select, install and use with all essential features built into the drive
- Intuitive user interfaces for quick drive setup and commissioning.
- Straightforward settings menu and assistants for fast commissioning.
- Built-in features for energy efficiency helping you save and manage energy.
- Connect to any automation system or use stand-alone
- ACS580-01 Wall-mounted general purpose drives up to 250 kW with IP21, as well as IP55, UL Type 12 protection class.
- ACS580-04 Compact general purpose drive modules from 250 to 500 kW with robust IP00 construction.
- ACS580-07 Cabinet-built general purpose drive. Power range from 250 to 500 kW with IP42 protection class as standard.
- ACS580MV The ACS580 medium voltage drive from 200 to 6300 kW, from 6 to 11 kV
ACS560 General purpose drives is simple to select, easy to commission and use. Its energy-saving easy-to-use features, and environmentally friendly specifications make it an appropriate solution for wide range of industrial applications.
- Engineered for the general purpose needs of various industries.
- ACS560 drive has built-in essential features that reduces commissioning and setup time.
- Integrated essentials like Built-in brake chopper, safe torque off function, alpha numeric control panel display, default input outputs, integrated conduit plates, EMC filter, Modbus RTU features make it an all integrated solution for various general purpose industrial applicaton.
- Hindi language and smart menu features in assistant control panels, wireless communication with bluetooth control panel provides superior user experience.
- The ACS560 is plug-in ready to control your industrial pumps,fans, compressors, conveyors, mixers and extruders and many other variable and basic constant torque applications.
- Energy efficiency features, easy connection to any automation system with a single parameter.
- ACS560-01 (0.75 to 160 kW, 1.0 to 215 hp)
ACS380 is preconfigured machinery drive comes in several variants ensuring seamless integration into machines and connecting to automation system. The drive is suitable for industries such as food and beverage, material handling, textile, mixers, conveyors, cranes and other constant-torque applications.
- Support for asynchronous, permanent magnet and synchronous reluctance motors.
- Adaptive programming for customizing the drive for the application.
- Coated boards as standard.
- Built-in icon-based interface for easy configuration.
- Integrated safety with safe torque off (STO) as standard.
- Unified height and depth of the IP20 product family simplifies wiring in cabinet installations
- Built-in braking chopper and common DC connection with internal charging circuit
- 1-phase, 200 to 240 V, +10%/-15% 0.25 to 2.2 kW (1/3 to 3 HP)
- 3-phase, 380 to 480 V, +10%/-15% 0.37 to 22 kW (0.5 to 30 HP)
Industry specific dedicated solutions such as HVAC, elevators, electric heavy working machines, and water & wastewater.
ACH550 The intelligent drive for HVAC applications from 0.75 to 355 kW
ACH580 All-compatible drives for HVACR from 0.75 to 500 kW
ACQ580 Water-dedicated all-compatible drives from 0.75 to 500 kW.
ACH480 All-compatible drives for HVACR from 0.75 to 22 kW
Legacy AC Drives
ACS800 from 1.1 to 5200KW, Three-phase operation 230 to 690 V AC
ACS850 from 0.37 to 560 kW, Three-phase operation 200 to 500 V AC
ACS550 from 0.75 to 355 kW, Three-phase operation 208 to 480 V AC
ACSM1 from 0.75 to 355 kW, Three-phase operation 230 to 500 V AC

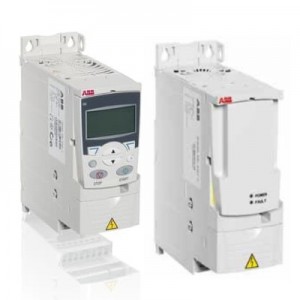

ACS355 from 0.37 to 22 kW, One ,Three-phase operation 200 to 400 V AC
ACS150 from 0.37 to 4 kW, One ,Three-phase operation 200 to 480 V AC
ACS400 from 0.12 to 37 kW, One ,Three-phase operation 200 to 480 V AC
ACS600 from 1.5 to 4300 kW, Three-phase operation 208 to 690 V AC
